ARCALE

RF PAYLOAD

Our solution for all your RF requirements

OUR

PRODUCT

ARCALE RF PAYLOAD IS NEW ALL IN ONE PRODUCT FAMILY DESIGNED TO
BRING A NEW WORLD IN RF MEASUREMENT CARRIED BY DRONE.

OUR
PRODUCT

WHAT

SETS US

APART

APPLICATIONS

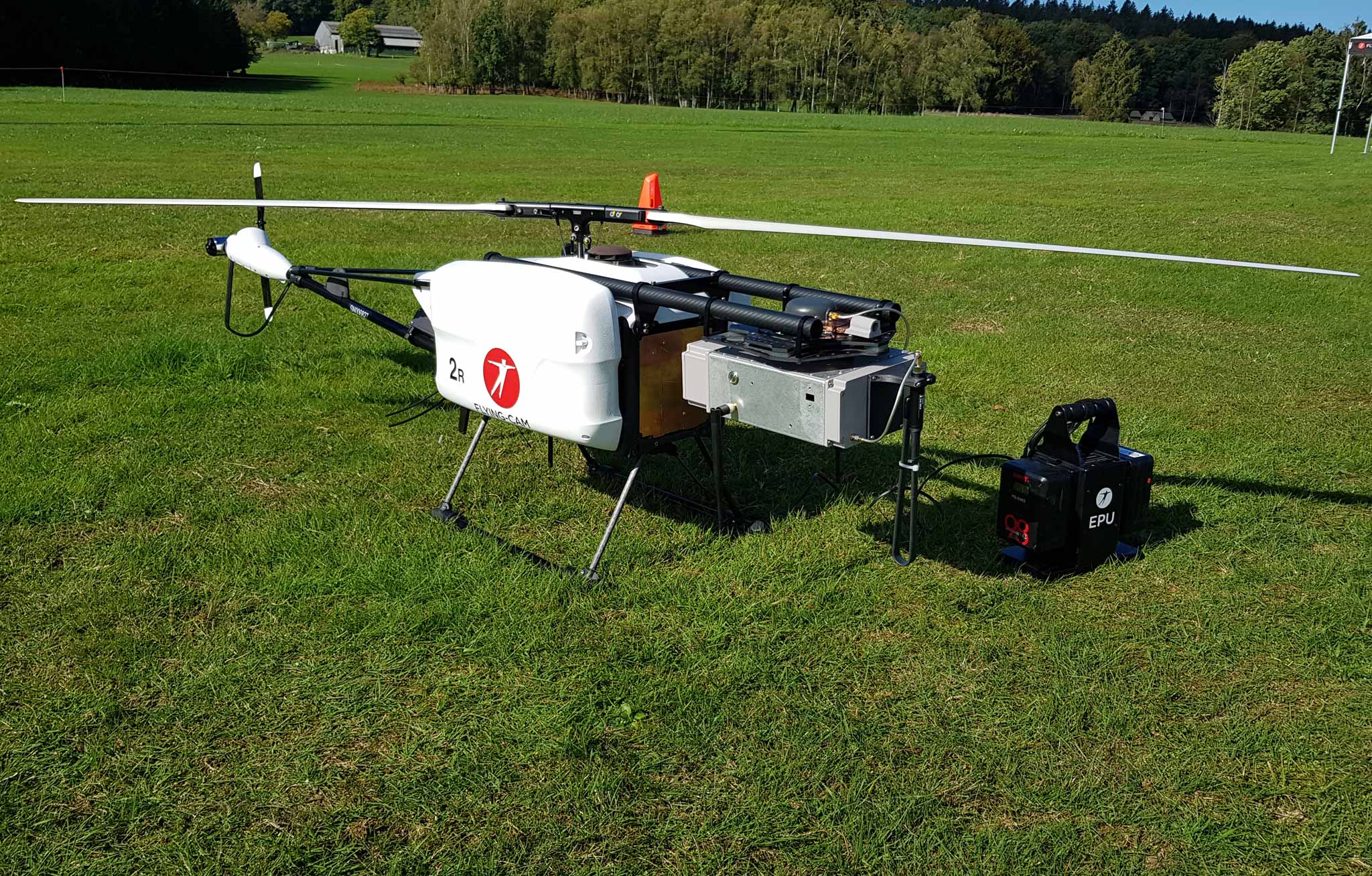

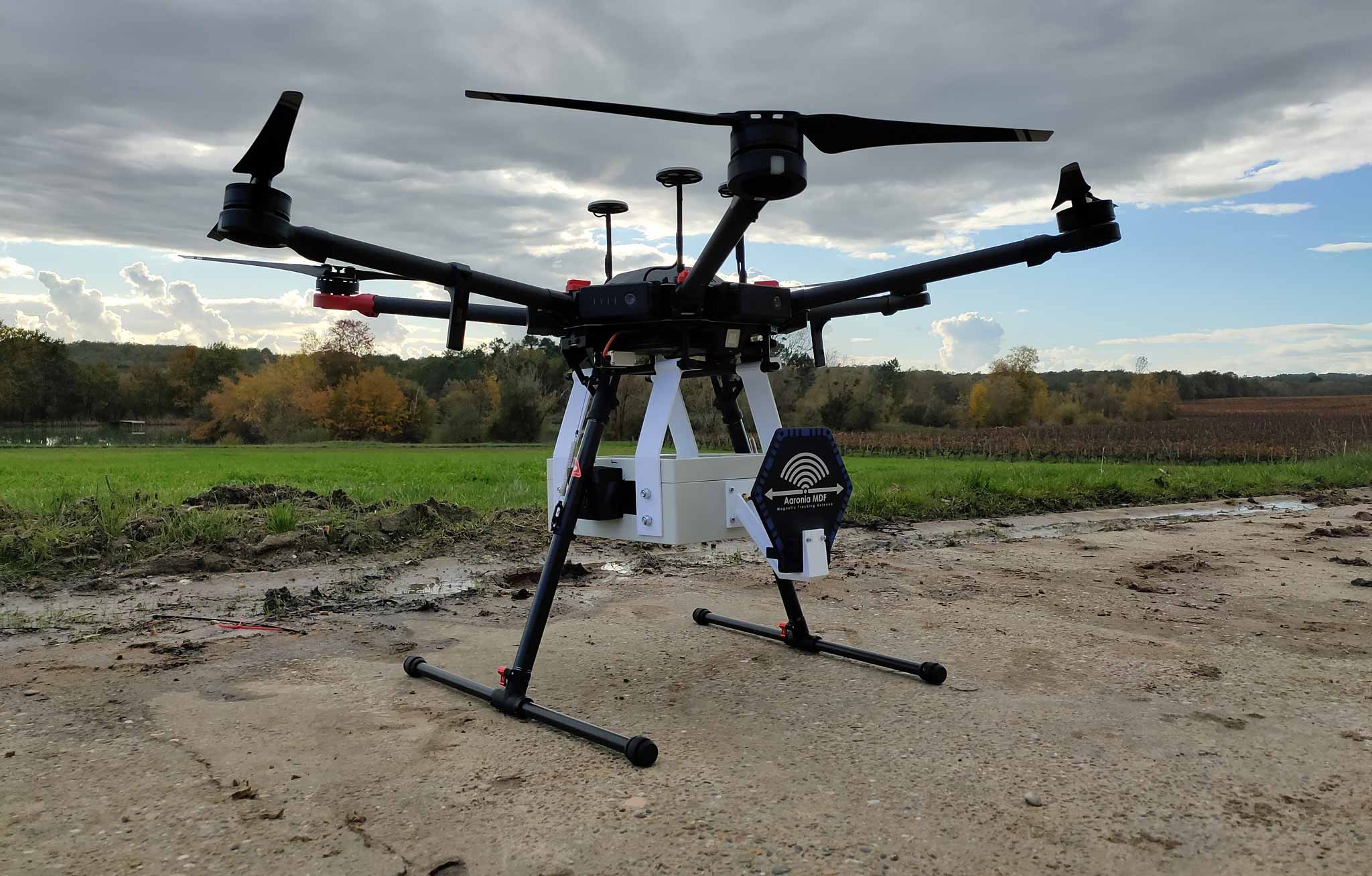

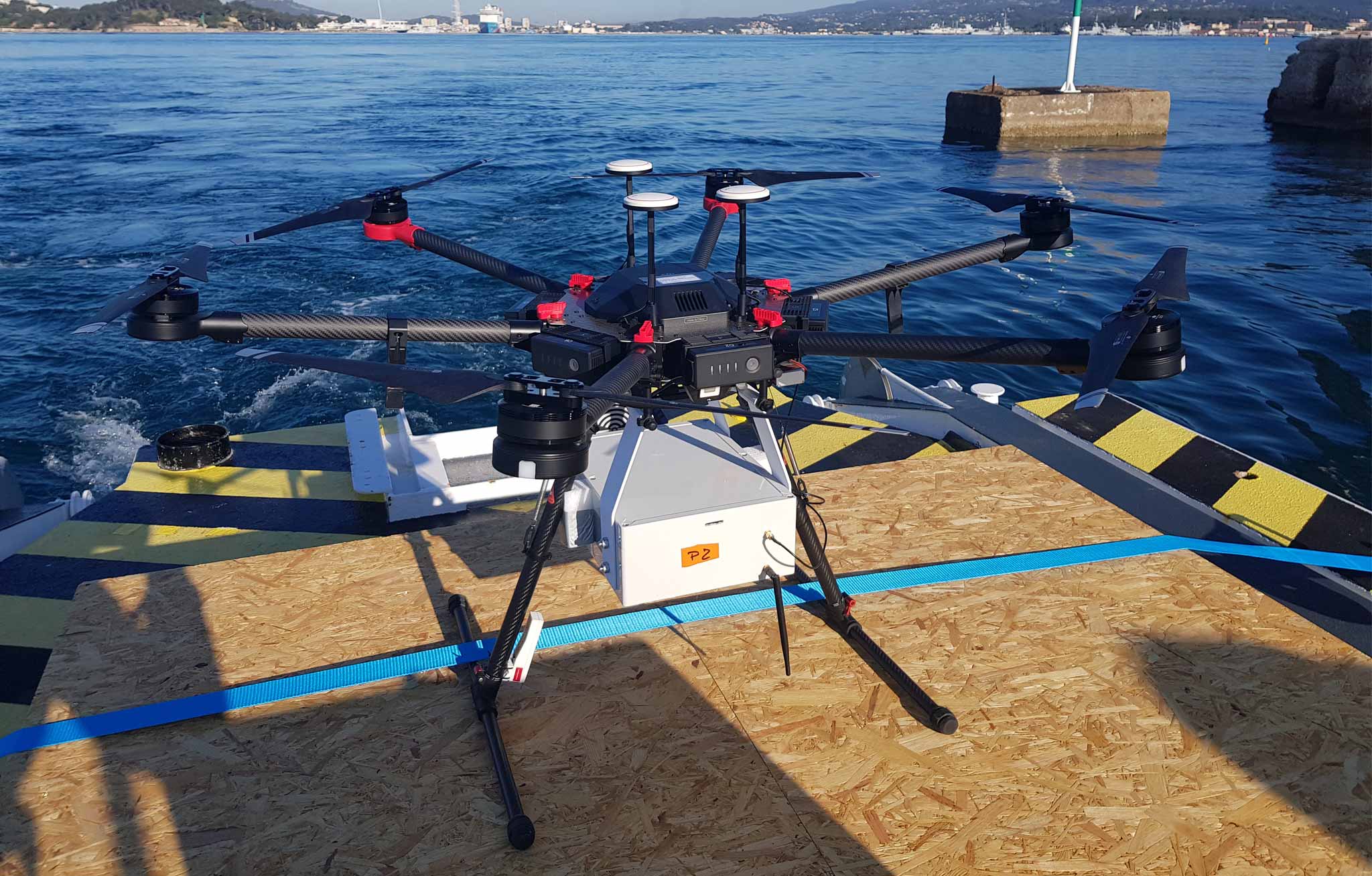

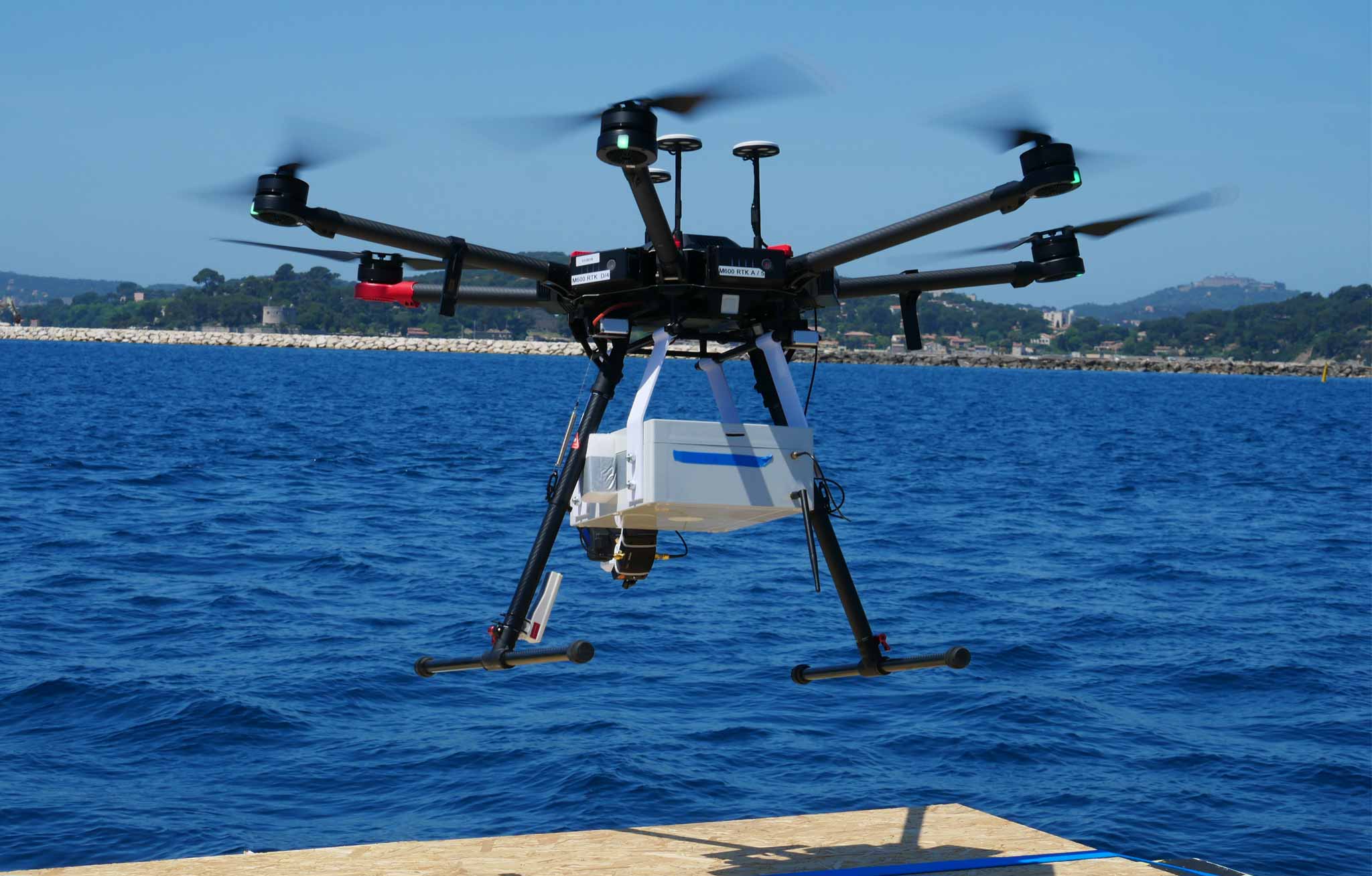

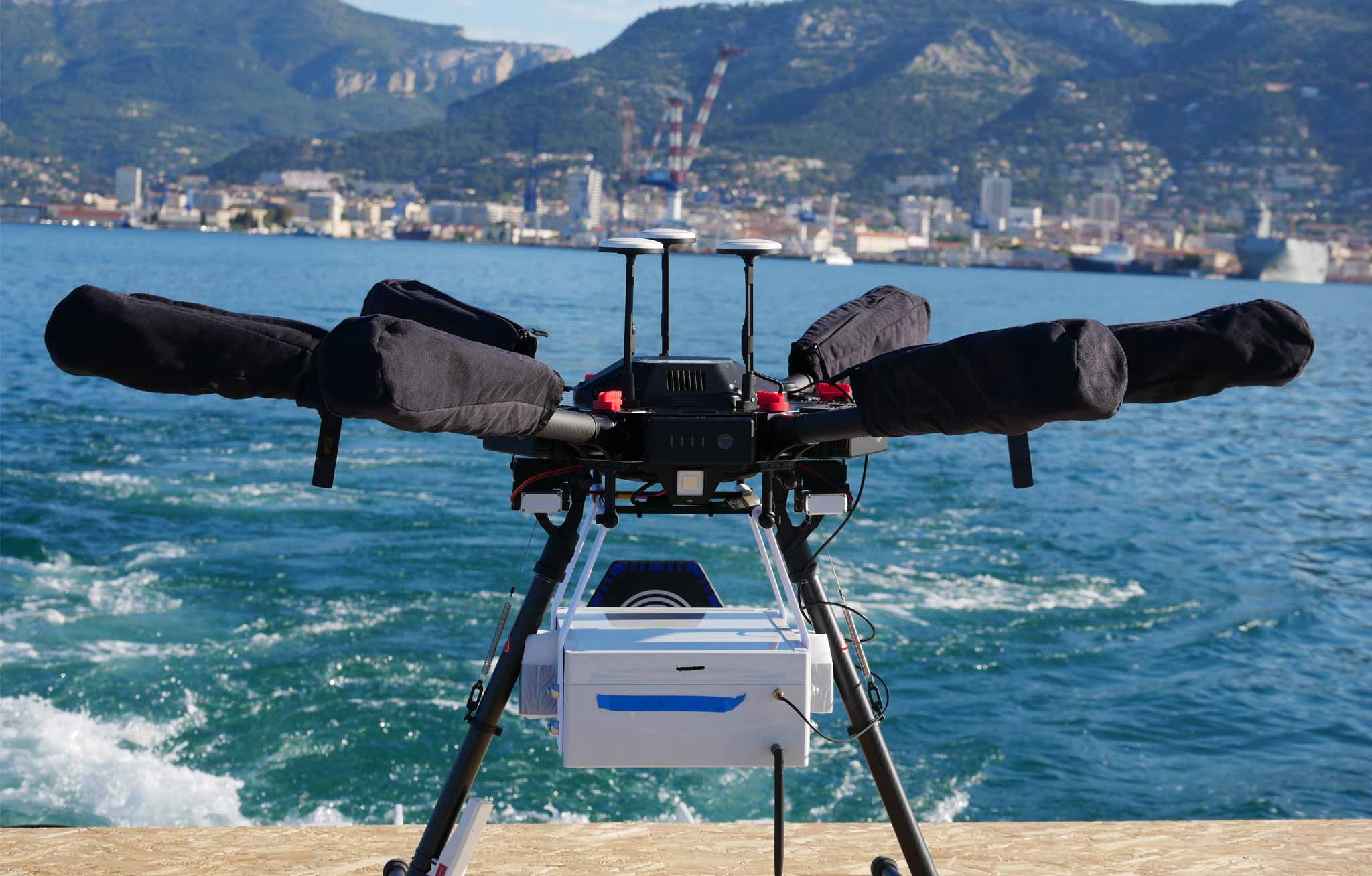

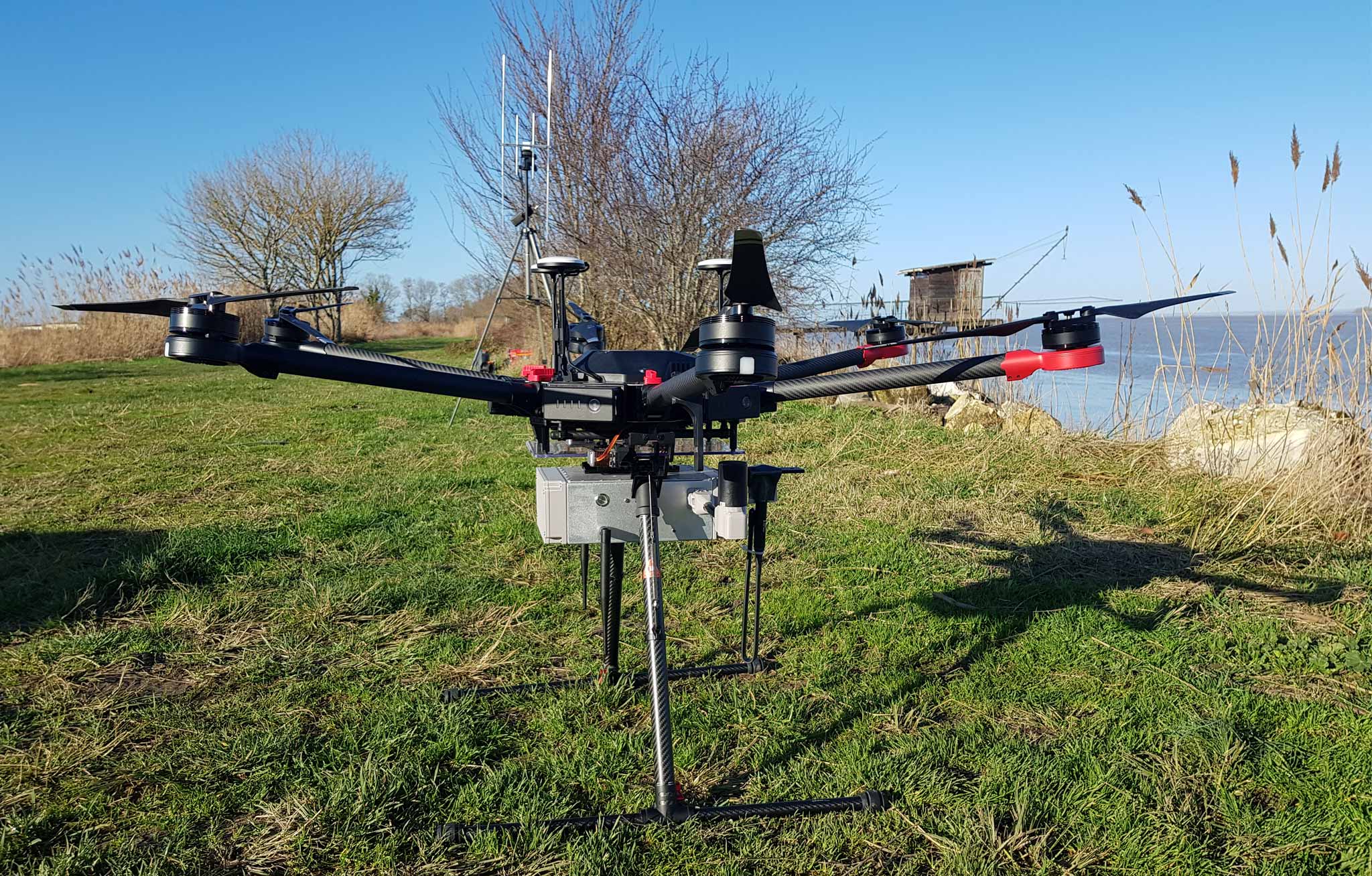

This product is totally drone independent; the customer must only adapt the mechanical link with the drone.

MODULARITY

And it’s a modular design, as well with the power generation, sensors, RF Front end and instrumentation.

OUR

EVOLUTION

2019

2020-21

2022

An idea
emerged

Development
in progress

Official Release
3D Antenna Pattern

- - - - - - - - - -

- - - - - - - - -

- - - - - -

END 2019

ANTENNA RADIATING PATTERN

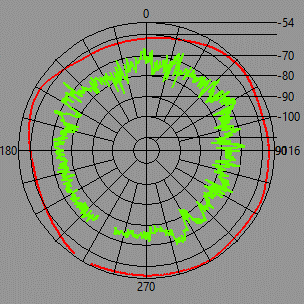

Omni Antenna

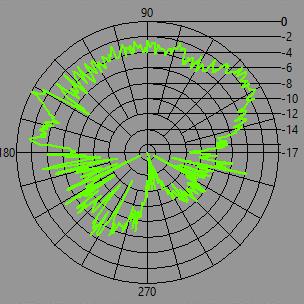

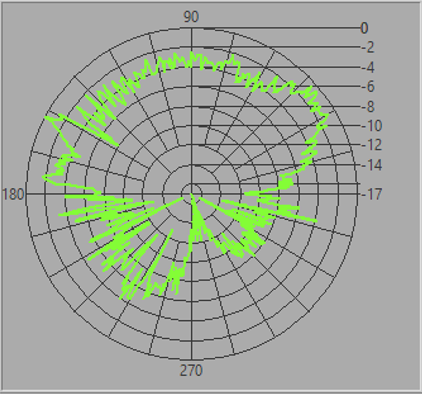

HB9CV Antenna

SPECIFICATIONS

ARCALE RF Payload

RF Specification :

Channel type

Rx or Tx

Frequency band (SMA 50 Ohms)

2MHz to 6GHz

iBW

12MHz

Sensibility

-110 to -10dBm

RF Front End :

Rx Mode

RF Specification depending of customer need

Antenna, filtering & LNA

VUHF

Antenna, filtering & optionnal LNA

SHF

Antenna, filtering & LNA

Tx Mode

10 dBm without antenna, ibw : 10MHz

Energy Module :

Battery module

Autonomy 1h, up to 5h depending hardware configuration

Software :

Payload

ARCALE RF Payload

Ground Station

Generic application or 3D antenna Diagram Measurement software

Hardware :

Hard Drive Capacity

Up to SSD 8TB

Optional Inertial Unit

0.05° Roll and Pitch (RTK)
0.2° Heading (Dual Antenna RTK GNSS)
Immune to magnetic distorsions
1 cm RTK GNSS Position (on request)

Connectivity :

Ethernet

Up to 2.5GB/s

Antenna, filtering & LNA

Telemetry

Encrypted link 868MHz up to 10km in free space depending local regulation or IP Link on request

Size :

Control unit : 200 * 175 * 90 mm
RF Front End without antenna : 35 * 175 * 90 mm minimum
Energy module : 35 * 175 * 90 mm minimum

Weight :

2kg depending sensors and modules configuration

RF PAYLOAD DETAILS

DOWNLOAD DATASHEET

YOUTUBE VIDEO

SOON

TEAM

SEEKER & Jamming MODE

COMINT / SIGINT

In
developement

Signal generation (Radar & more)

- - - - - - - - -

TX MODE

- - - - - - - - - - - - - - - - - - - - - -

- - - - - - -

Spectrum monitoring and Jammer drone link

- - - - - - -

- - - - - - - - -

- - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - -

- - - - - - - - -

- - - - - - - -

- - - - - - - - -

ARCALE RF PAYLOAD

WE CAN ALSO CUSTOMIZE OUR SOFTWARE AND HARDWARE TO ANSWER ALL YOUR RF REQUIREMENTS
